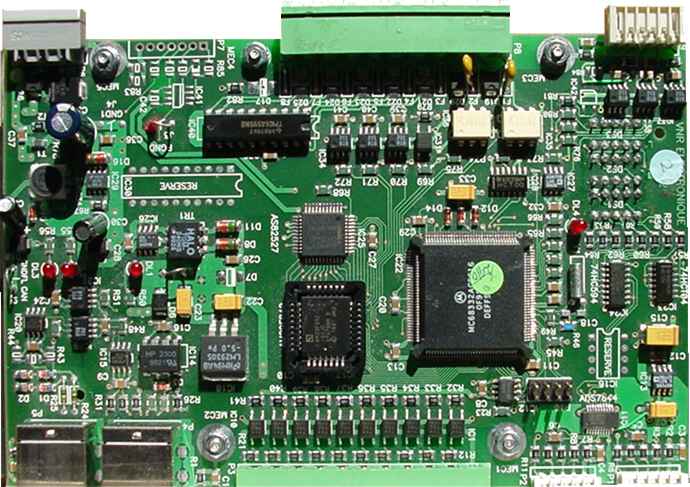

Posi-Control Box:

CPU: Motorola 68332
Flash: 128 KBytes
RAM: 512 Bytes

Interfaces:

• 1x CAN
• 1x Serial RS-485

I/O:

• Out 8 x 24V DC optocoupled
• PWM for DC motors
• IN 10x optocoupled 24V DC.
• A/D 12 bit 2 ratio metrics differntial inputs.

Distributed control system, designed to store and playback up tp 200 projectors positions inside a TV Studio.
