REALISATION EXAMPLES

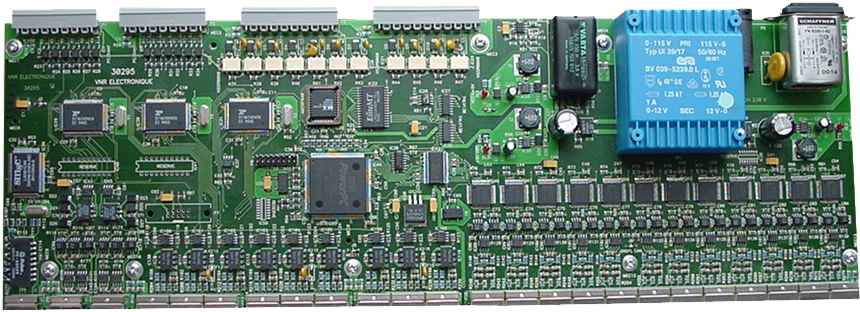

Posi-Controller:

CPU: IBM Power PC 403 GCX 80 MHz
Flash: 512 KBytes
RAM: 128 KBytes (non volatile through a 3.6V battery)
Eeprom: 16 KBytes

Interfaces:
1 x Ethernet 10 T
16 x Serial RS-485 (optocoupled)
12 x CAN (optocoupled per channel)

Digitals inputs 12 x 24V optocoupled
Digitals outputs 11 x 0.5A 48V optocoupled

This apparatus allows positioning (horizontal, vertical, pan, tilt, altogether 15 parametres) de projector in a TV studio. Up to 250 projectors are controlled through this apparatus.
